Grand Alliance Import Corporation
Project Overview
Cold Storage MNL prepared the walk-in chiller layout for Grand Alliance in Sucat, Parañaque. The provided drawing shows a chiller room and an ACU room, including their dimensions, insulated panel thicknesses, and refrigeration layout.
Project Type
Walk-In Chiller
Location
Sucat, Parañaque
Project Highlights
Project Type
Walk-In Chiller
Chiller Dimensions
13.254 m (L) × 9.505 m (W)
Temperature Range
+15°C to 0°C
Panel Thickness
Chiller: 100 mm | ACU: 50 mm
Location
Sucat, Parañaque
Chiller Room
Area: 121.47 sq. m.
Height: 3.80 m
ACU Room
Area: 33.49 sq. m.
Height: 2.90 m

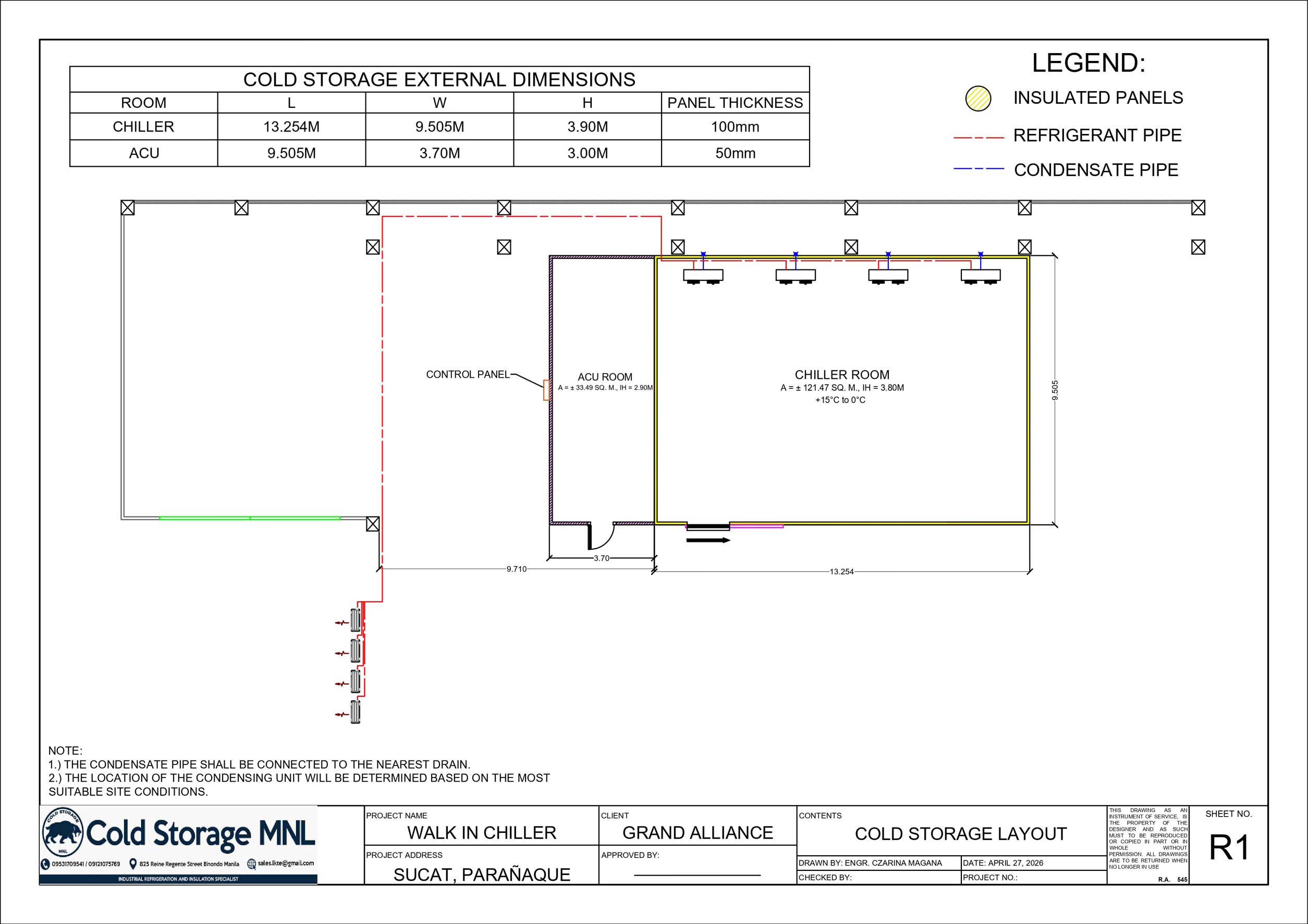

Project Floor Plans
Original walk-in chiller layout drawing for the Grand Alliance project.
